High Flow Lube Oil Filter Vessels

Available features

• Flanged connections up to 4”, for a maximum flow rate of 2400 l/min – In line or 90° connections, to meet any type of application – Base-mounting design, for ease of the replacement of the filter element
• Fine filtration rating, to get a good cleanliness level into the system
• Water removal elements, to remove the free water from the hydraulic fluid.
• Bypass valve, to relieve excessive pressure drop across the filter media
• Vent ports, to avoid air trapped into the filter going into the system
• Drain ports, to remove the fluid from the housing prior the maintenance work
• Visual, electrical and electronic differential clogging indicators

Common applications

• Off-line filtration of reservoirs
• Filtration systems
• Lubrication systems

Filter housing materials

• Head: Anodized Aluminum
• Housing: Anodized Aluminum
• Bypass valve: Anodized Aluminum

Pressure

• Test pressure: 652 psi (45 bar)
• Burst pressure: 1,740 psi (120 bar)
• Pulse pressure fatigue test: 1,000,000 cycles with pressure from 0 to 435 psi (30 bar)

Bypass valve

• Opening pressure 50 psi (3.5 bar) ±10% – Other opening pressures on request.

∆p element type

• Micro-glass elements – series N: 20 bar – Fluid flow through the filter element from OUT to IN



Seals

• Standard NBR (BUNA) series A
• Optional FPM (VITON) series V

Temperature

• From -13°F to 230°F (-25 °C to +110 °C )
• Connections

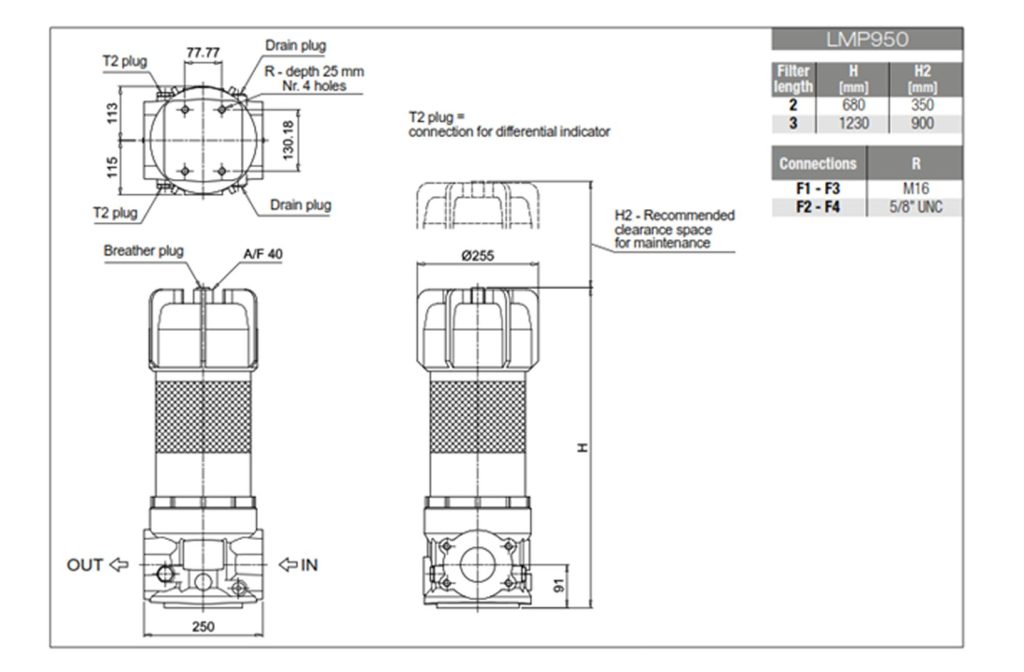

  • LMP 950: In-line Inlet/Outlet
  • LMP 951: 90° Inlet/Outlet
