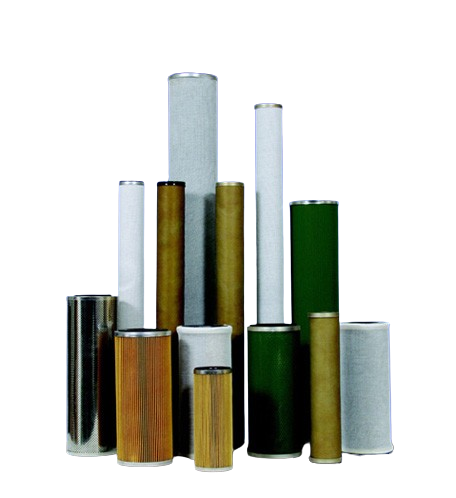

Coalescers & Separator Filter Elements

General Coalescer Specs

• Wide selection with interchanges for most maufacturerʼs cartridges
• 5 to 9 pH range
• Thread Base Elements have injection-molded, glass-filled nylon end caps, bonded with epoxy adhesive
• 75 PSID Differential Pressure Rating
• Buna-n gaskets are standard. (Other gasket materials are available upon request.)
• 225˚F maximum operating temperature
• Open end elements have aluminum end caps bonded with epoxy adhesive

General Separator Specs

• Available in lengths ranging from 11.25” to 56”
• Pleated paper separators are available in 5 and 25 micron
• Teflon coated screen separators are available in 75 micron
• All micron ratings are nominal rated
• Maximum temperatures are 225˚F
• Standard gaskets are buna-n
• Differential pressure rating up to 100 PSID

Construction

Coalescing filters are constructed in three layers. The inner and outer layer act as built-in pre-filters, according to flow. These are also to drain and support layers. The middle layer is constructed of fiber/microglass and acts as the coalescing portion of the filter. The pre-filter layer removes dirt / particulate prior to coalescing in order to maximize filter life. Inner and outer layers can be made of various materials, usually rayon or fiberglass, impregnated with phenolic resin. Situated between these layers is the coalcesing layer; we use borosilicate microglass primarily. Efficiencies range from 93% to 99.999% at the 0.3 micron ranges. the pre-filter layer can be constructed using cellulose or microglass with micron retentions from 1 to 100 microns. End cap options include open ends with flat gaskets, open ends with o-ring seals, threaded base and also in many outside and inside diameter options.
