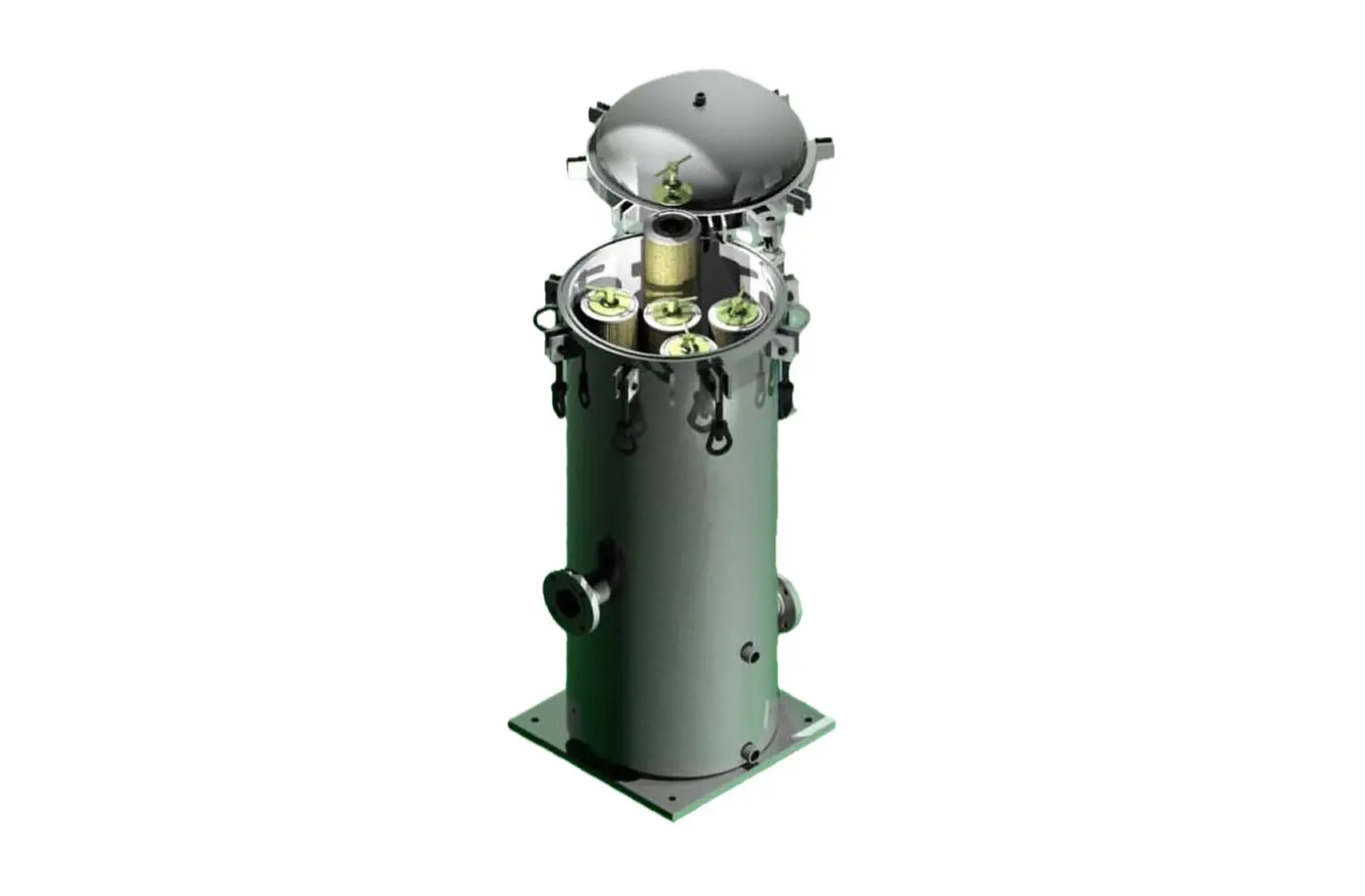

Multi-Round-718-736-Lube-Fuel-Filter-Housing-450x752-1

Standard Designs Industrial Cartridge

Custom Service & Design manufactures industrial cartridge filter vessels for the removal of contaminants from process fluids. Cartridge filter vessels offer a wide range of media options to solve many filtration problems. Standard designs accommodate industry standard filter cartridge designs of 1″ inside diameter cores and 2.25″-2.75″ Outside diameter. Filter vessel designs accommodate 10″ 20″, 30″ or 40″ filter cartridges with DOE, SOE, 222 or 226 end cap configurations. Filter vessel diameters are available to house 1 to 205 cartridges for flow rates up to 4,100 GPM.

Materials of construction include carbon steel, 304L stainless steel and 316L stainless steel.

CSD Model	# of Standpipes	Pentair Model
C04	1	C44
C06	3	C66
C07	4
C08	6	C88
C10	9
C12	11	C1212
C16	20	C1616
C18	26	C1818
C22	40
C24	50	C2424
C30	78	C3030
C36	112	C3636
C42	155	C4242
C48	205	C4848

Single Round Hydraulic & Lube Oil Filter Vessels

Hydraulic / Lube oil filter element vessels utilize a 8″ diameter vessel and accept industry standard 6″x18″ or 6″x36″ filter elements

Description	Specification
ELEMENT SIZES	INDUSTRY STANDARD 6×18 AND 6×36 ELEMENTS
BASKET LENGTH	18” OR 36”
ELEMENT RETAINER MATERIAL	CARBON STEEL, STAINLESS STEEL
HOUSING LID	3-LUG HINGED LID WITH 0.25” (F) NPT VENT PORT AND HANDLE
CONNECTION SIZE	1.0”, 1.25”, 1.5”, 2”, 3” OR 4”
CONNECTION STYLE	NPT OR FLANGED
INLET / OUTLET LOCATIONS	OUTLETS AVAILABLE: BOTTOM, OPPOSITE SIDE, SAME SIDE, BOTTOM ELBOWED AWAY
SEALS	BUNA, EPDM, VITON, TEFLON ENCAPSULATED VITON
CONSTRUCTION / FINISH	CARBON STEEL W/ STANDARD EXTERIOR FINISH; STAINLESS STEEL W/ BEAD BLAST SATIN FINISH
PRESSURE RATING	150 PSI @ 300˚ F, 100 PSI @ 300˚ F
ADDITIONAL PORTS	TWO 0.25” (F) NPT GAUGE PORTS; TWO 0.75” (F) NPT DRAIN PORT
BASE	FLAT BOTTOM (FLOOR MOUNT)

In Stock Filter Vessel Specifications

Description	Specification
ELEMENT SIZES	INDUSTRY STANDARD 6×18 AND 6×36 ELEMENTS
BASKET LENGTH	18” OR 36”
ELEMENT RETAINER MATERIAL	CARBON STEEL
HOUSING LID	3-LUG HINGED LID WITH 0.25” (F) NPT VENT PORT AND HANDLE
CONNECTION SIZE	2”
CONNECTION STYLE	NPT
INLET / OUTLET LOCATIONS	OPPOSITE SIDE
SEALS	BUNA
CONSTRUCTION / FINISH	CARBON STEEL W/ STANDARD EXTERIOR FINISH
PRESSURE RATING	150 PSI @ 300˚ F
ADDITIONAL PORTS	TWO 0.25” (F) NPT GAUGE PORTS; TWO 0.75” (F) NPT DRAIN PORT
BASE	FLAT BOTTOM (FLOOR MOUNT)

Multi-Round Hydraulic & Lube Oil Filter Vessels

Multi-Round Hydraulic / Lube oil filter element vessels utilize a 16″-48″ diameter vessels and accept industry standard 6″x18″, 6″x36″ or 6″x44″ filter elements.

Industrial cartridge filter vessels are available for most all filter applications. Vessel options shown here are standard 150 # design. Many custom options are available for OEM, single user and distributor customers.

CSD Model	# of Standpipes	Pentair Model
C16	3	H1616
C18	4	H1818
C22	6
C24	9	H2424
C30	14	H3030
C36	22	H3636
C42	31	H4242
C48	38	H4848

Duplex Filter Vessels

For 636, Coreless Pall, Parker & Hypro Applications

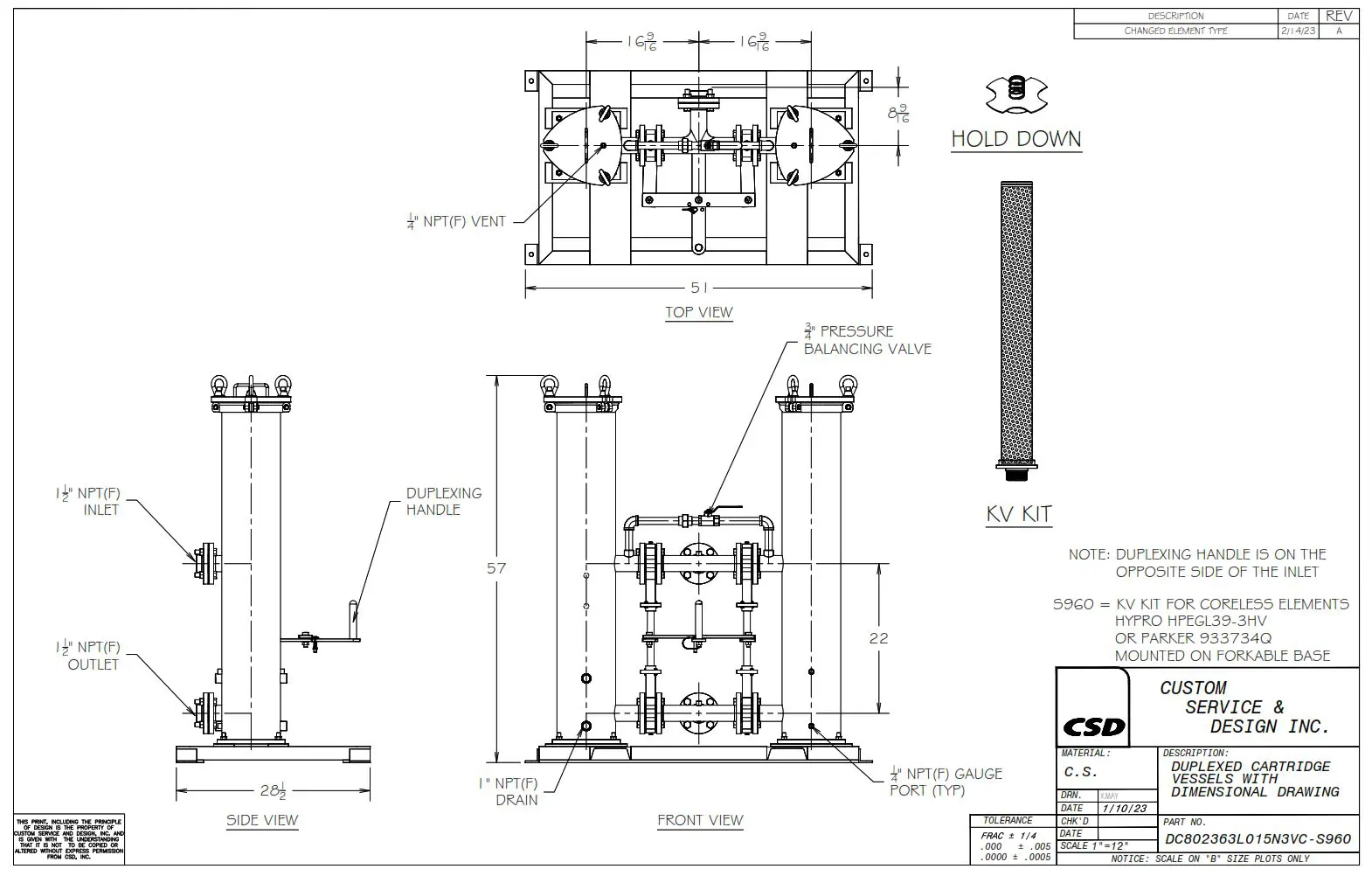

Fabricated carbon steel, 304L or 316L stainless steel. Base mounted with fork lift slots and drip lip. Differential pressure indication options available.
