Waterjet Cutting

Filtration & Pumping Solutions for Waterjet Cutting

SC Industrial Sales offers quality filtration and pumping solutions for abrasive waterjet cutting, including filtration systems, replacement pumps, consumables and high pressure inline filters.

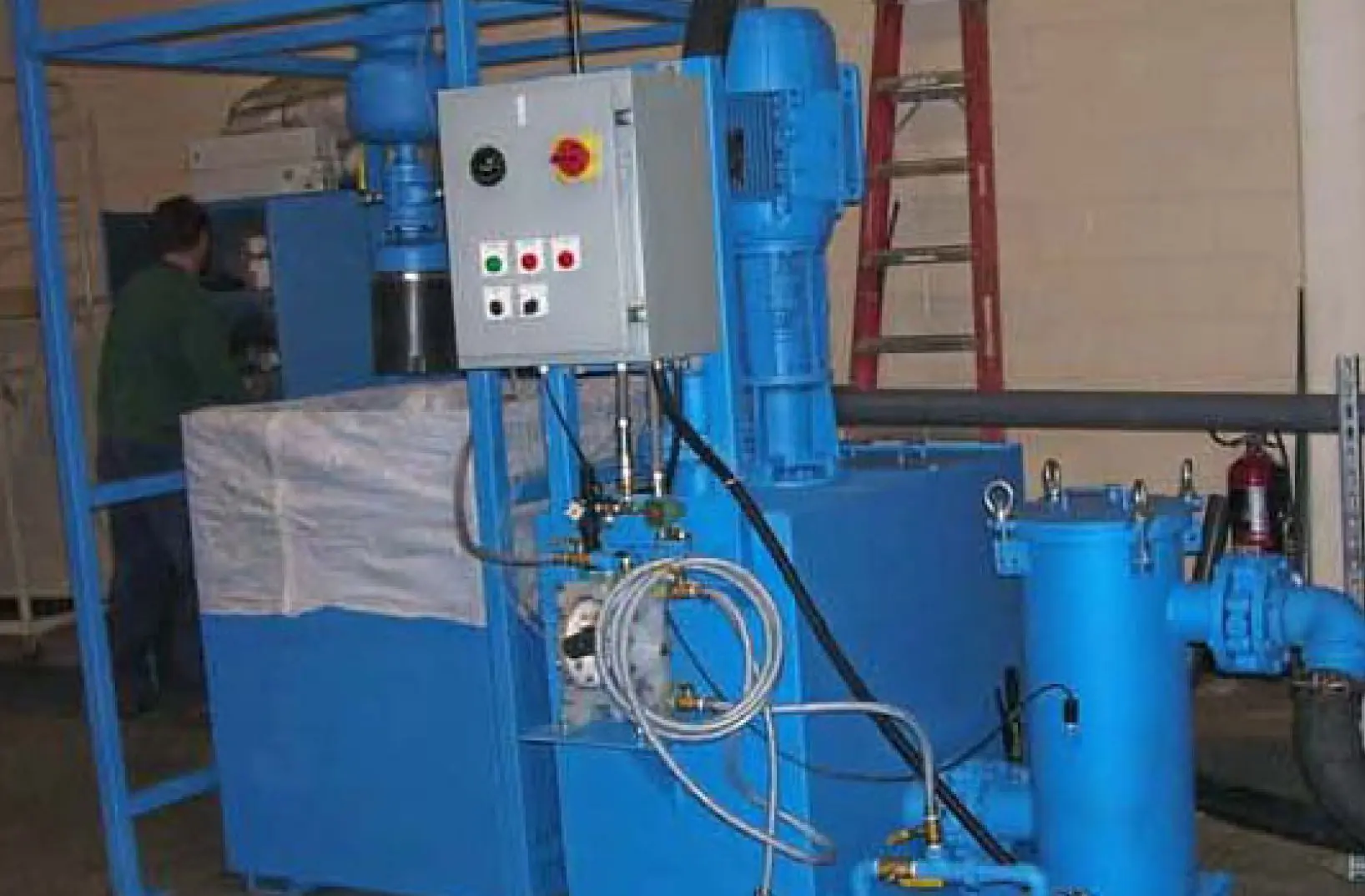

Abrasive Removal System

CSD’s Waterjet Cutting Abrasive Removal System is a cost effective system engineered to keep the abrasive material from building up in the catch tank. This system will reduce downtime and loss of production during catch tank cleaning.

A heavy duty vertical sealless pump pulls the abrasive laden water through a strainer basket and into a stainless steel centrifugal separator. Abrasive is separated centrifugally and falls into the bag hopper. The clean water exits the top of the separator and feed waterjets tank sweepers in the catch tank. The tank sweepers pushes the abrasive to pump suction for efficient tank cleaning.

Standard Features Include:

Heavy Duty Strainer with Stainless Steel Basket
Coated Sealless Vertical Pump
Heavy Duty Stainless Steel Centrifugal Separator
4,000 LBS Bag Hopper
Tank Agitation / Sweeper Package
Designed for Catch Tanks 6′ x 12′ and Smaller
Small 3′ x 7′ Footprint with Height under 8′

Consumables for Waterjet Cutting Machines

For Calypso, Techni, Ebbco and more

0.35µm Filter Cartridge
0.8µm Filter Cartridge
Meltblown Polypropylene Filter Cartridge
Pleated Bag Filters
Standard Bag Filters
Resin Bottles
O’Rings

Calypso P/N’s: (SND-600-000-000), (SND-600-000-001), (SND-600-000-002), (SND-600-000-003), (SND-600-000-004), (SND-600-000-005)

Centrifugal Separators

Pumps

Inline High Pressure Filters for Nozzle Protection

Remove sand and heavy solids from water/liquids.

Replacement vertical and horizontal pumps for moving abrasive laden water. Silicon oxide coating increases life exponentially.

The 56 Series high pressure filter is rated for 60,000 PSI operating pressure. This large capacity filter is an ideal solution for waterjet cutting nozzle protection. Various micron options are available to sufficiently protect any nozzle no matter how small.
