Name: High Pressure Duplex Filter
Brand: MP Filtri

Maximize Uptime with High-Pressure Duplex Filters

FZD Stainless Steel High Pressure Duplex Filters include an integral change over valve allowing for filter element replacement without shutting the system down. Filters are typically installed directly inline with standard NPT or SAE hydraulic fittings. Filter medias include microglass with stainless steel options.

Maximum Pressure Rating: 5,076 PSI (350 BAR)
Flow Rates: Up to 16 GPM (60 LPM)

Product Specifications

View Duplex Filter Specs

Standard Features

Specifications

Female Threaded Connections up to 3/4″
ßx(c)>1000 Filtration Efficiency
Balancing Valve for equalizing pressures between chambers
Bypass Valve to protect filter elements from collapsing in overpressure situations

Vent Ports to relieve entrapped air
Drain Ports
High and Low Collapse Pressure Filter Element Options
Visual, Electrical and Electronic Differential Pressure Indicators

Filter Housing: 316L Stainless Steel
Seals:
- NBR (Buna-N): -13°F – 230°F (-25°C – 110°C)
- FPM (Viton): -4°F – 250°F (-20°C – 120°C)
- MFQ (Silicone): -52°F – 250°F (-50°C – 120°C)
Bypass Valve Setting: 87 PSI (6 BAR) +/- 10%

Available Configurations

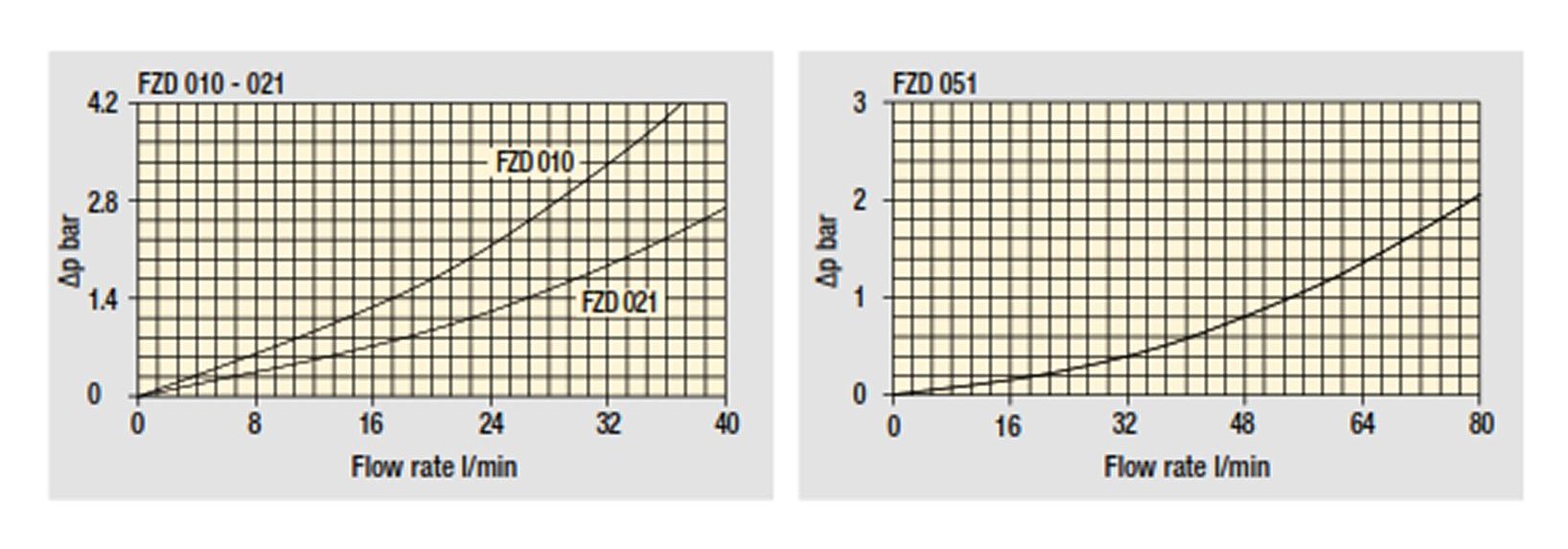

Filter Assembly Sizing

Flow Rates (LPM)

Reference fluid viscosity of 30 cSt
