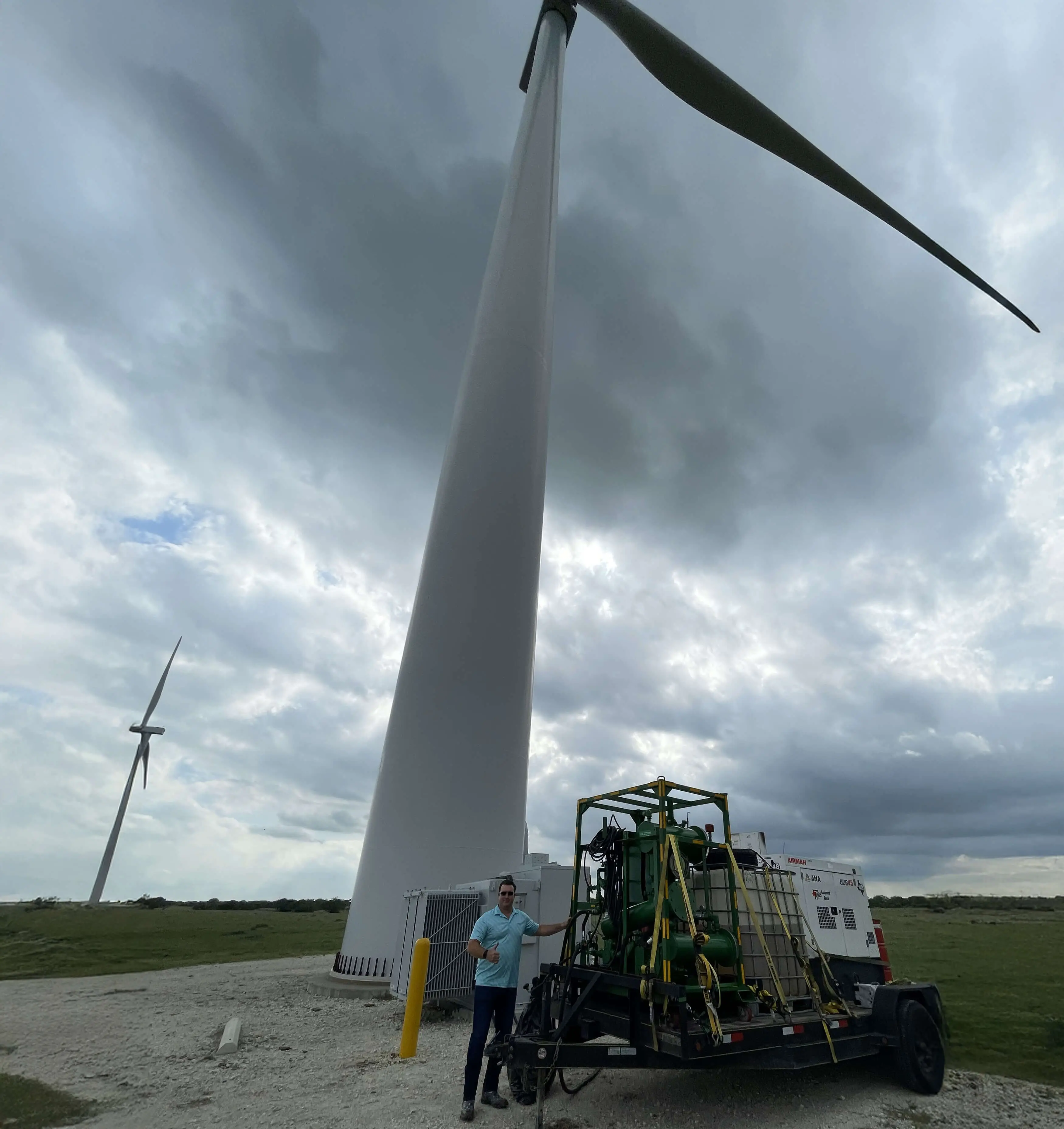

Transformer Oil Purifiers remove dissolved gasses, moisture and particulate for transformer and other insulating oils. Our systems utilize permanent stainless steel vacuum chamber dispersal media that is highly effective at exposing the oil to vacuum conditions and reduces foaming. Our high efficiency filter media removes carbon and other particulate. The vacuum tower, water sump, heater housing and piping is 304L Stainless Steel.
These systems are ideal for service work. They are light weight and easy to move around yet highly effective at removing moisture, gasses and particulate.
Vacuum pump options include two stage rotary vane vacuum pump or single stage vacuum pump with booster pump. The single pump systems are economical and best for degassing and dehydrating only. The two stage vacuum system is best for applications where more flow rate is needed, such as pulling vacuum on a transformer.
Oil pumps are designed to pump against high vacuum conditions. Oil pump flow rates are adjustable via Variable Frequency Drive (VFD).
Flow Rate: 10 GPM (Variable, 3-10 GPM)
Voltage: 480V/3 Phase – 60 FLA
Control Panel: NEMA 4
Heat: 36 kW
Vacuum Pump: 40 cfm Vane w/ 200 cfm Booster
Oil: 1-1/2” Camlock
Vacuum: 2” Valved Vacuum
MOC: 304LSS Vacuum Tower, Oil Carryover Tank, Heater Housing, Piping
Filtration: 6×18; 1 micron
Vacuum Gauge: Absolute Torr, Digital
Water Sensor: PPM, Digital
Dimensions: 48″ Depth X 68″ Width X 85″ Height
Weight: 2,190 LBS
